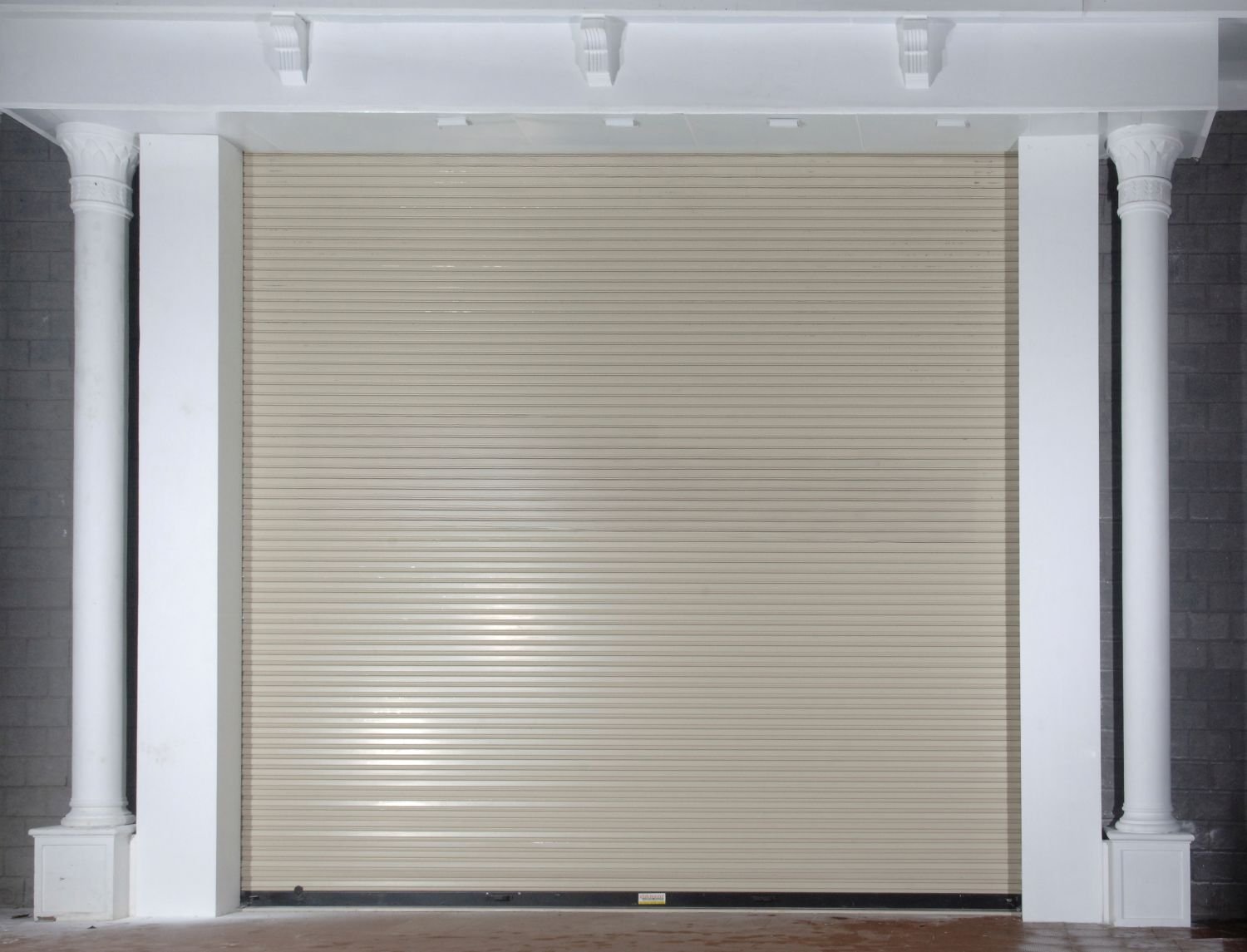

Heavy Duty Shutters

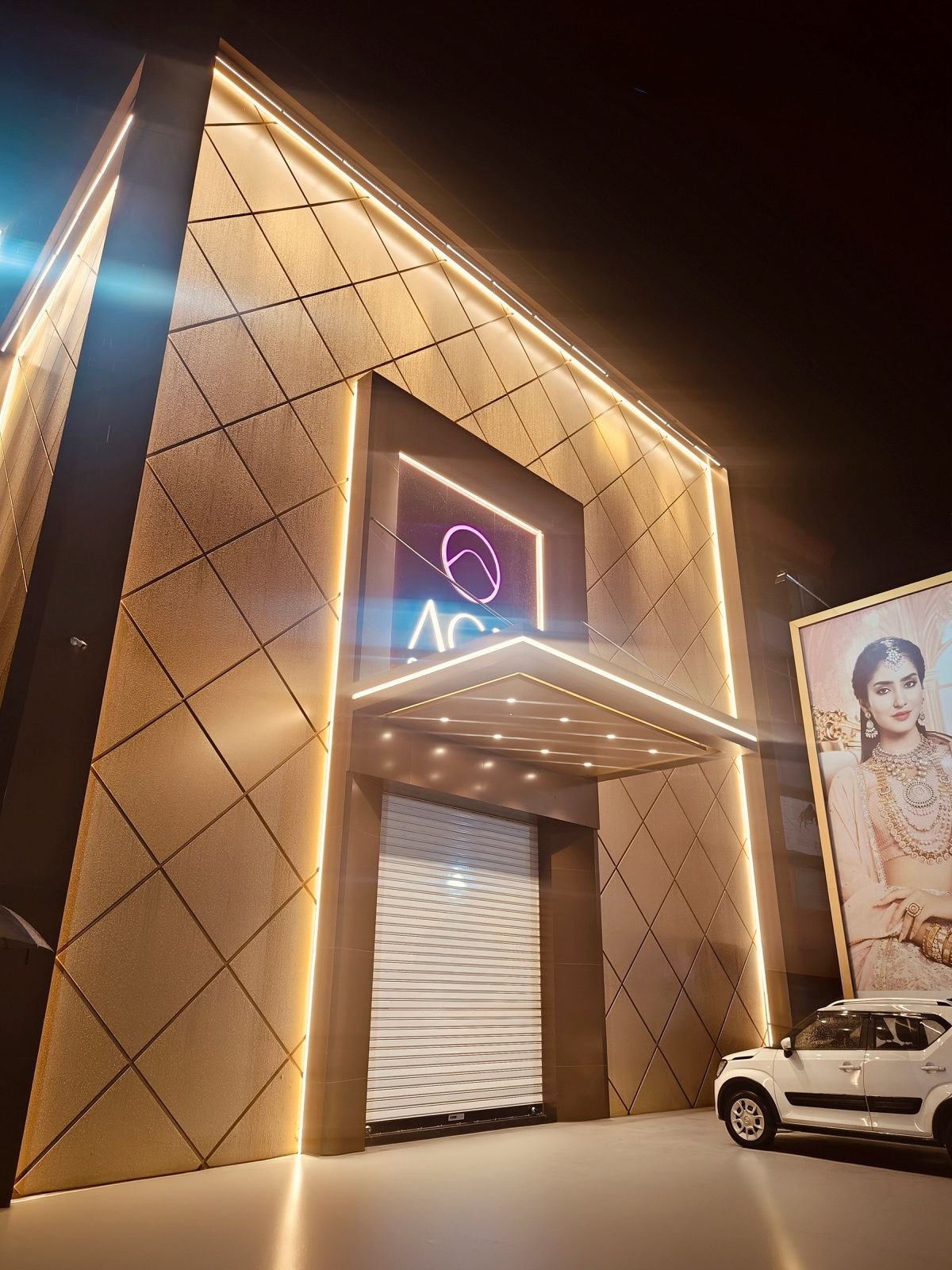

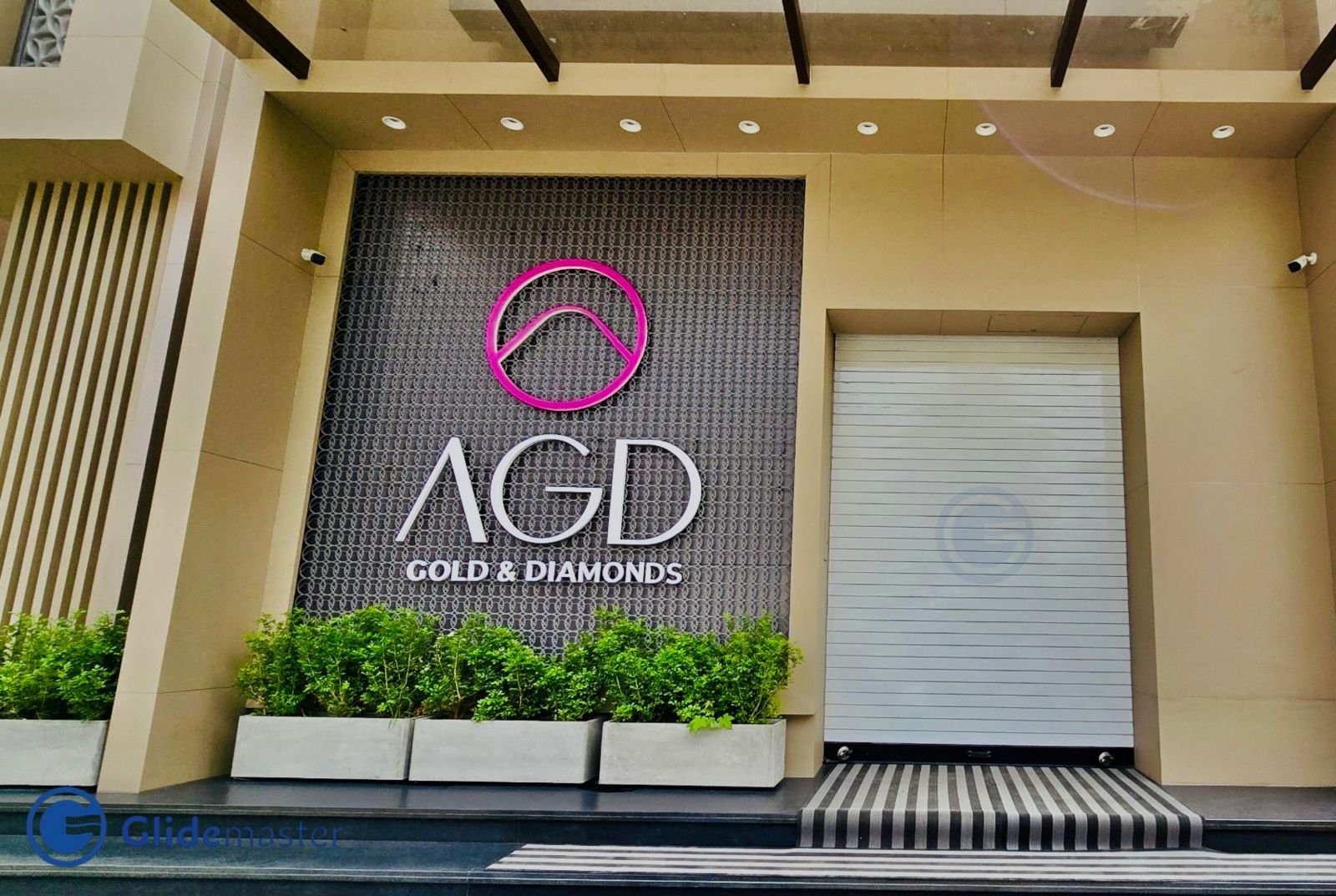

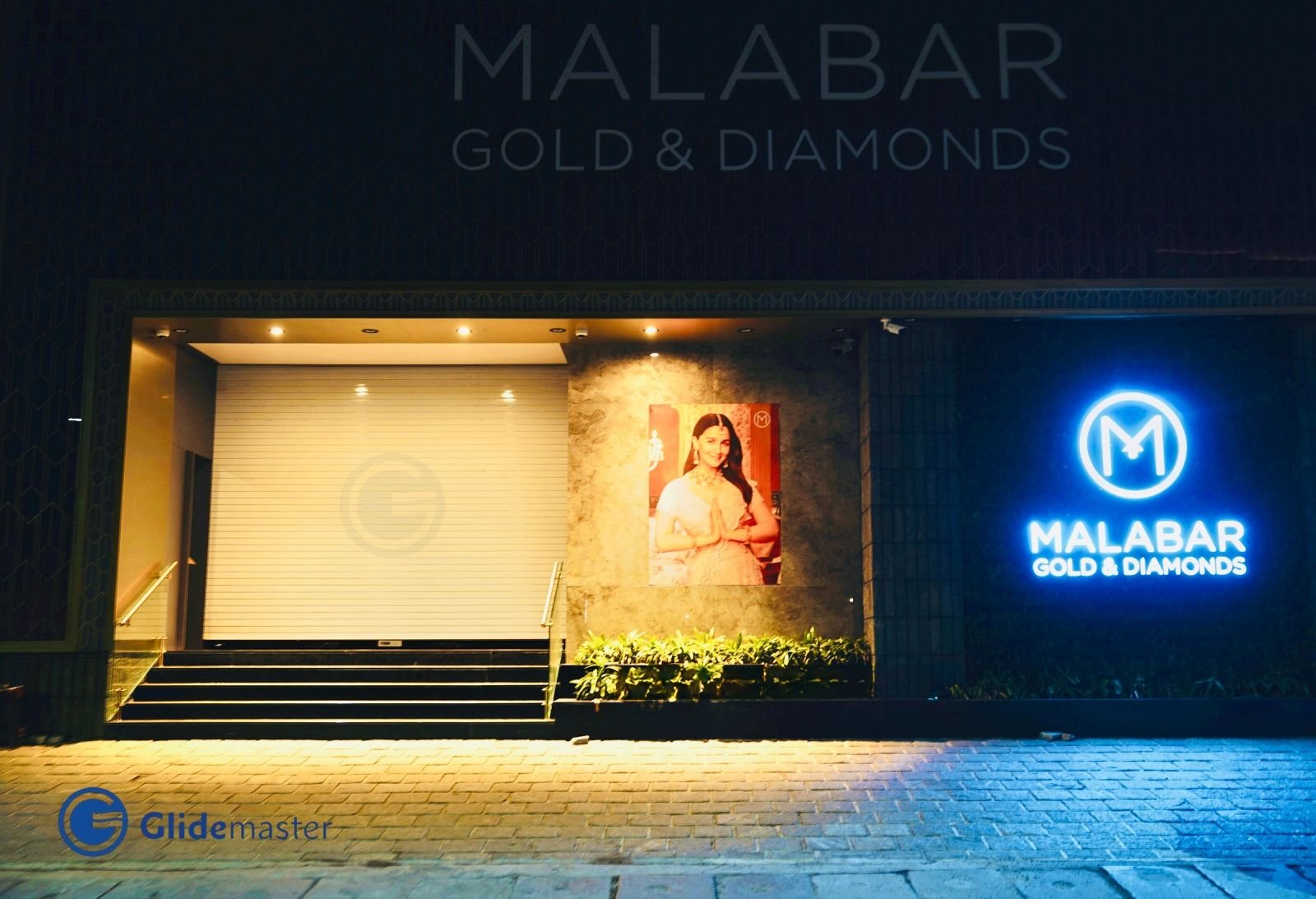

Our Heavy Duty Shutters are engineered for applications requiring the highest level of security. As one of the most robust shutter solutions in our portfolio, they are ideally suited for integration with anti-theft systems, providing enhanced protection for high-value assets. Designed with security as the primary focus, these shutters are an excellent choice for high-security environments such as jewelry stores, financial institutions, and other facilities where maximum protection is essential

  • RAL Colours
  • Available in GL / PPGL / 304 SS
  • Compatible for Extruded Aluminium Channel and Bottom Profile
  • Grease-less
  • Sound-free
SpecificationDetails
Base MaterialMarine Grade Single skinned Galvalume prefinished colour coated steel laths
Material Thickness0.90 MM to 1.20 MM (Depends on span)
Screen LockingDouble side interlocking + nylon beadings on both side end to end
Profile Height100 mm
Profile Depth15 mm
Profile ShapeMagna Profile with Corrugation and Lines
Protective CoatingZinc Aluminium Coating
Protective Coating Combination55% Aluminium, 43.4% Zinc & 1.6% Silicon
Protective Coating Thickness150 GSM
FinishNatural Galvalume / Pre Finished RAL Colours
Weight15.5 Kg/m² approx
Strength550 MPa tensile strength
Wind Load ResistanceClass 2 (EN 12424)
Operating LimitSafe operating area
