Wider Span Shutters
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

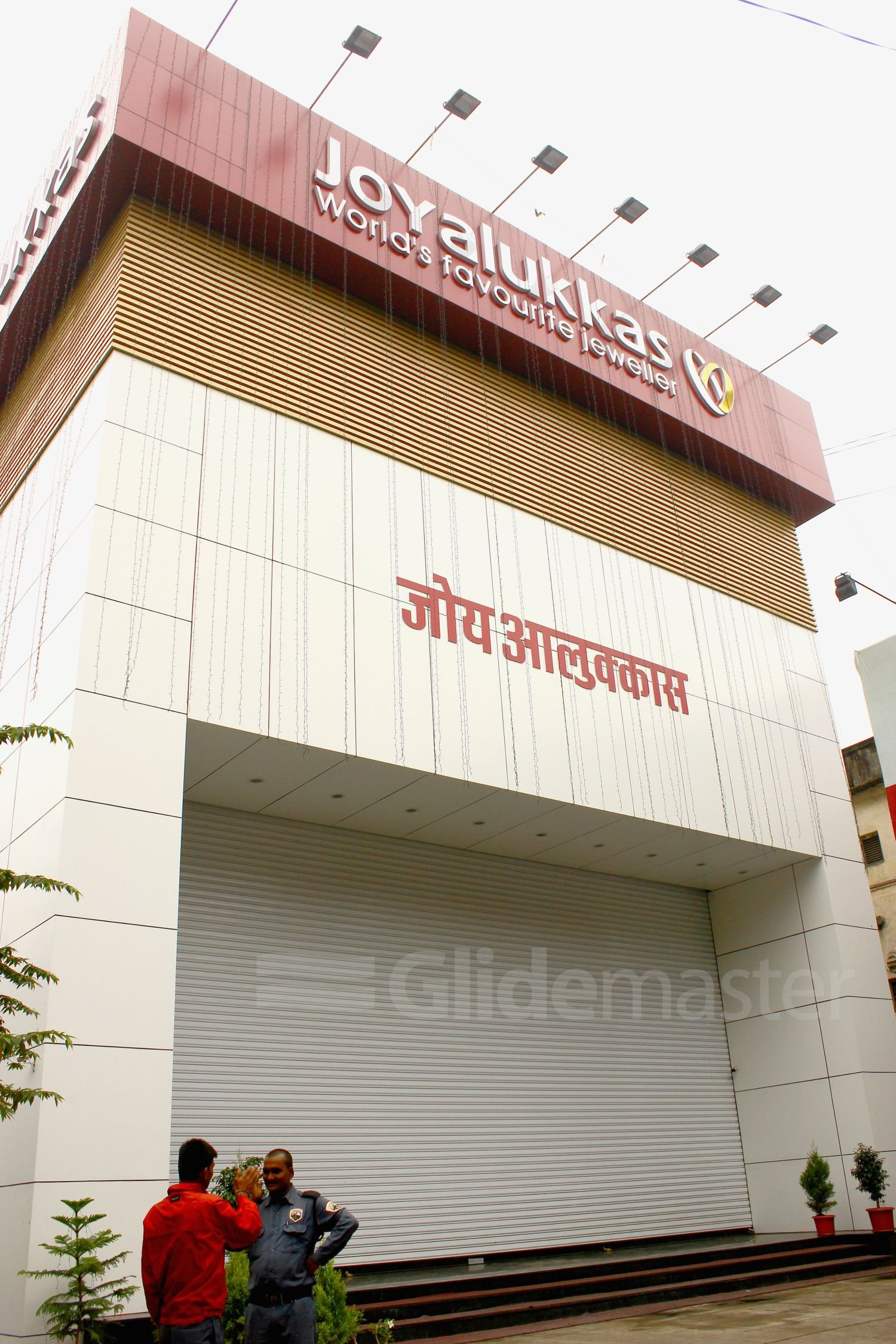

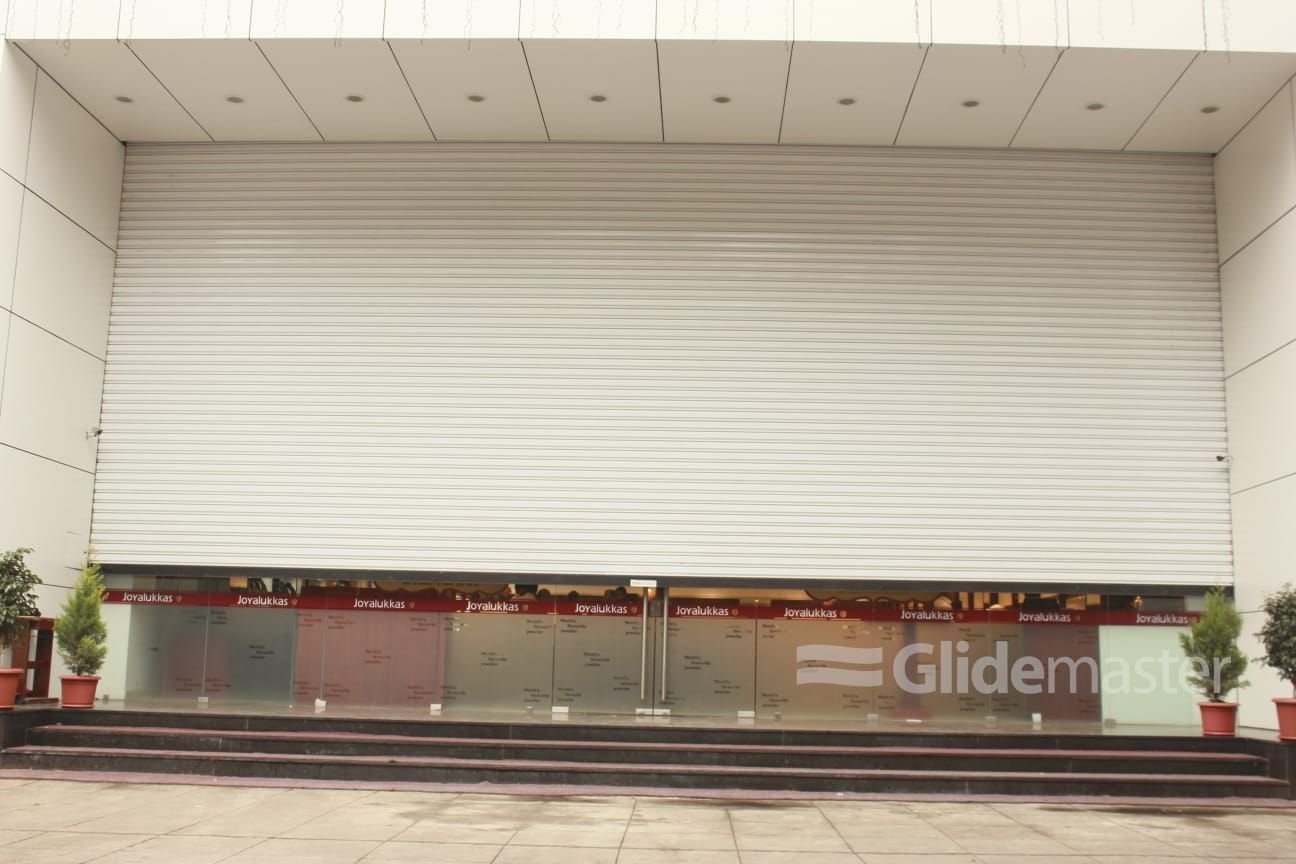

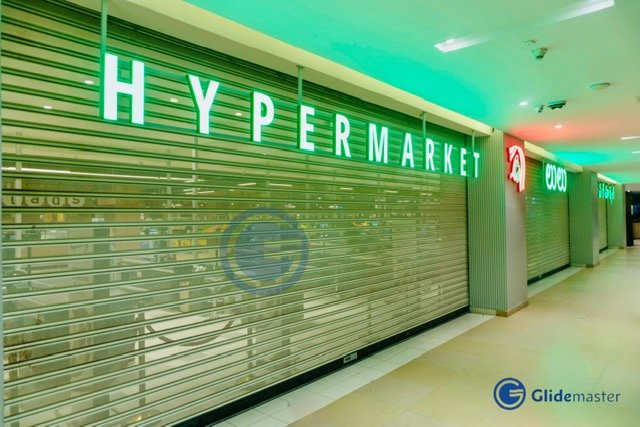

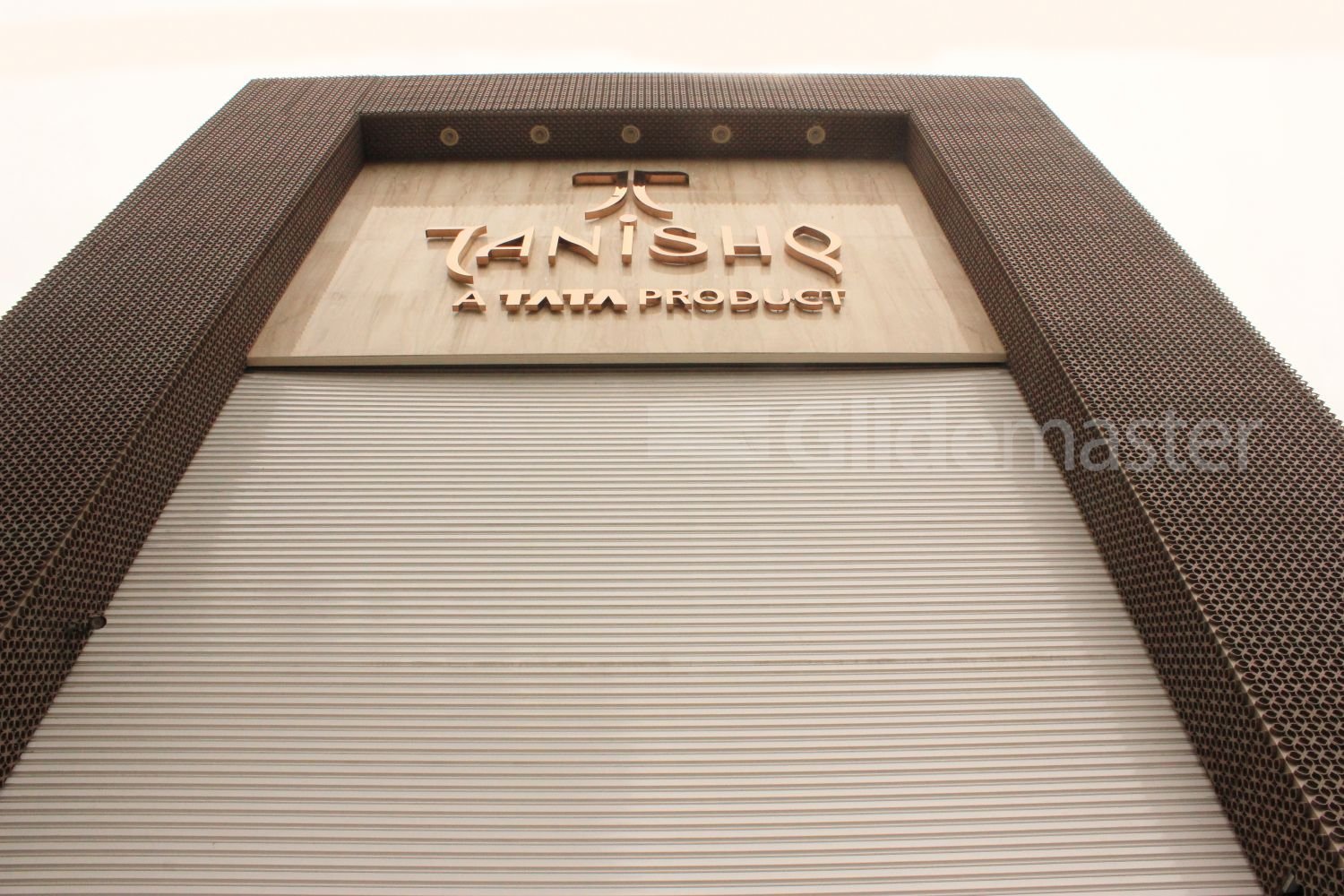

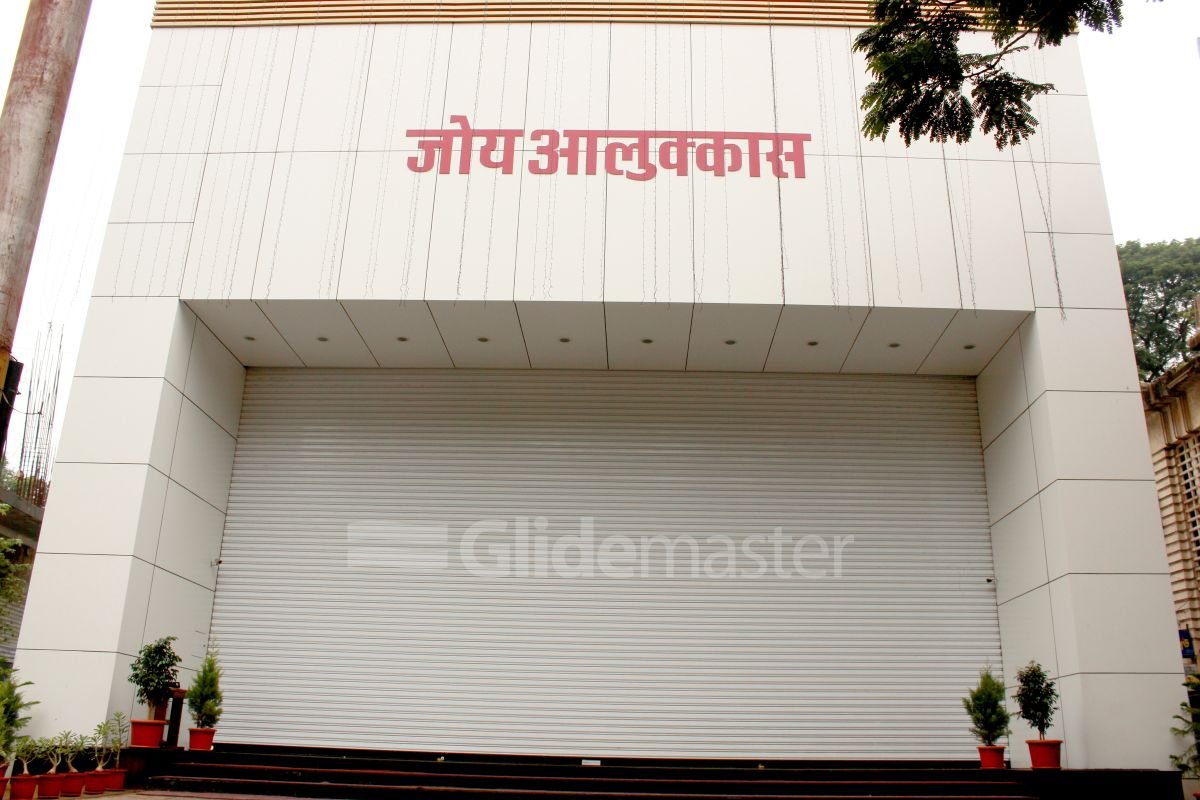

Our Widerspan Shutters are specifically designed for commercial buildings that require secure, large-span openings without compromising on aesthetics or performance. Capable of covering openings of up to 16 meters, they provide significantly wider coverage than conventional commercial shutters, making them ideal for shopping malls, commercial complexes, showrooms, logistics centers, and large retail spaces.
Engineered for strength and reliability, Widerspan Shutters maintain the same high standards of quality, durability, and operational efficiency as our other premium shutter solutions. Their robust construction and long service life ensure dependable performance, even across extra-wide openings, delivering a secure and seamless solution for modern commercial applications
- RAL Colours
- Available In Galvalume
- Compatible For Extruded Aluminium Bottom Profile
- Heavy Wind Load Resistance
- Fire rated certified Design
| feature | Specification |
|---|---|
| Base Material | Marine Grade Single skinned Galvalume prefinished colour coated steel laths |
| Material Thickness | 1.05 mm - 1.25 mm |
| Screen Locking | Double side interlocking + nylon beadings on both side end to end |
| Profile Height | 102 mm |
| Profile Depth | 20 mm |
| Fire Rating | 2 Hours fire rating As per IS 3614:1992 (Part-II) - Tested and certified by BIS and NABL Recognized lab. |
| Profile Shape | Mega Profile with corrugation |
| Protective Coating | Zinc Aluminium Coating (150 GSM) |
| Coating Combination | 55% aluminium, 43.4% zinc & 1.6% silicon |
| Finish | Natural Galvalume / Pre Finished RAL Colours |
| Weight | 17.5 Kg/m² approx |
| Strength | 550mpa tensile strength |
| Wind Load Resistance | Class 2 (EN 12424) |
