GL 1000SL 7500GLP 7500SLW 7500

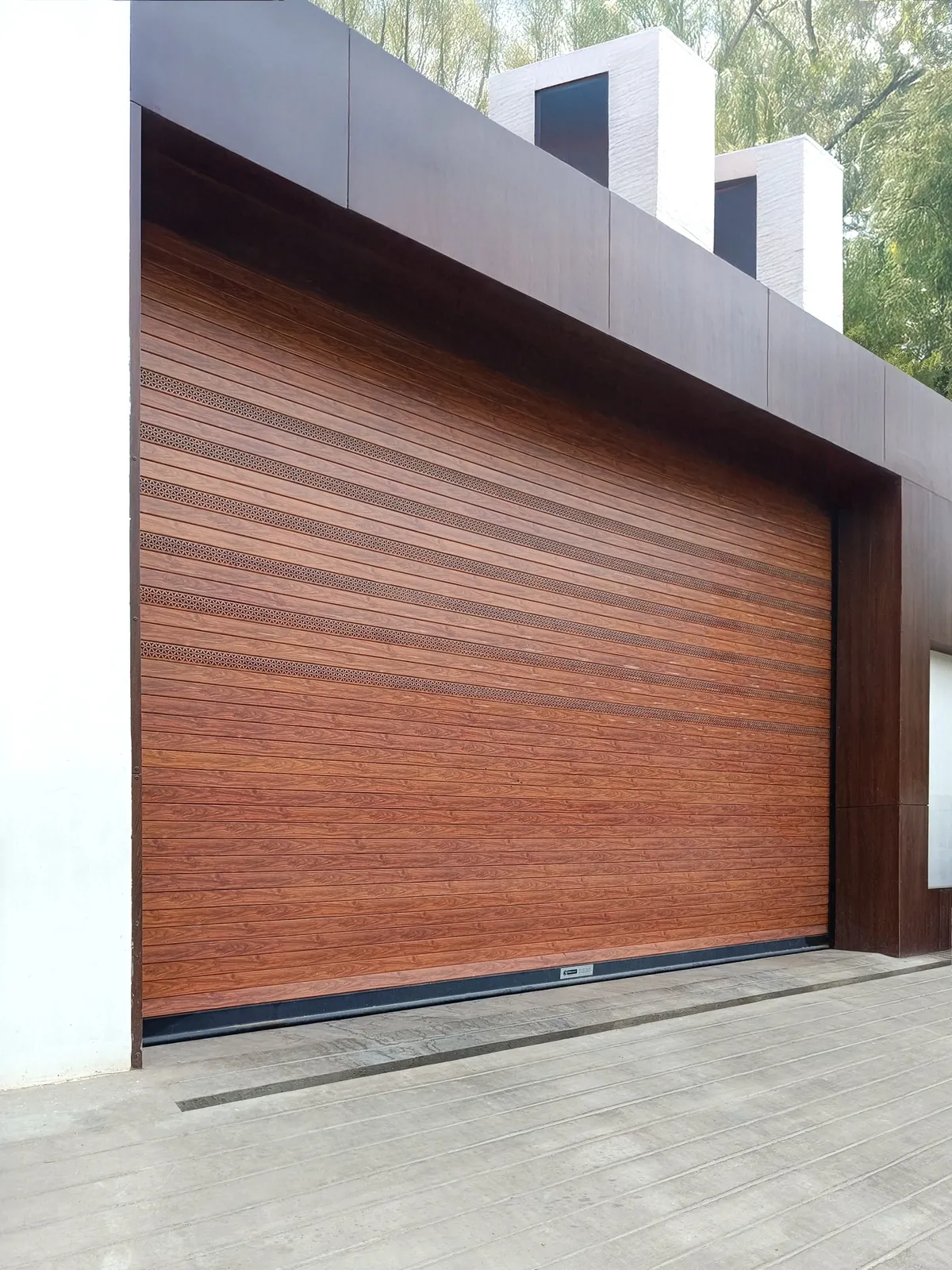

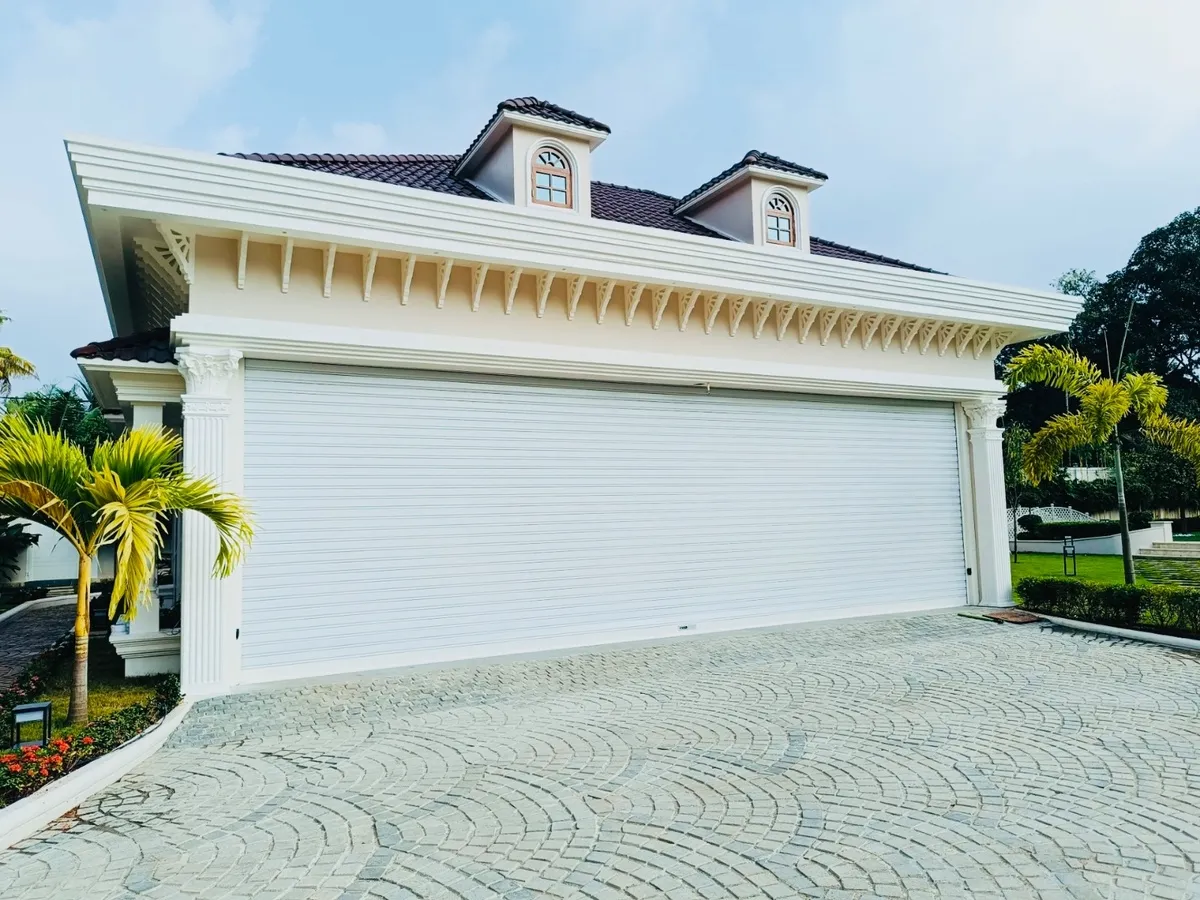

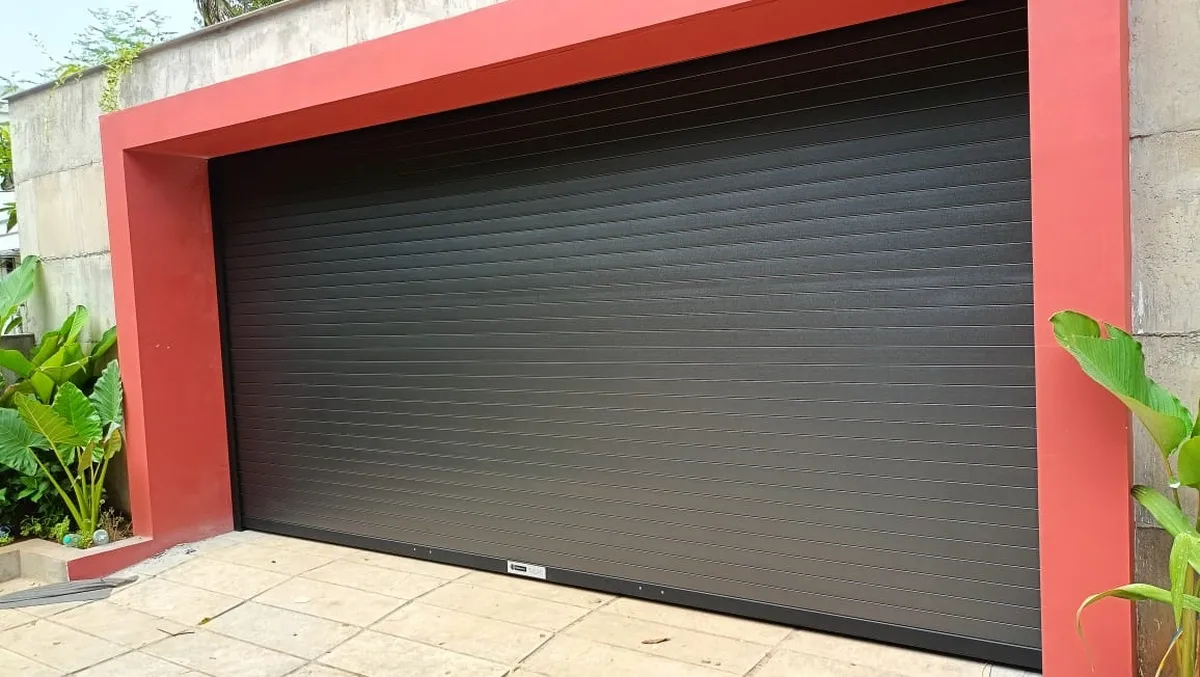

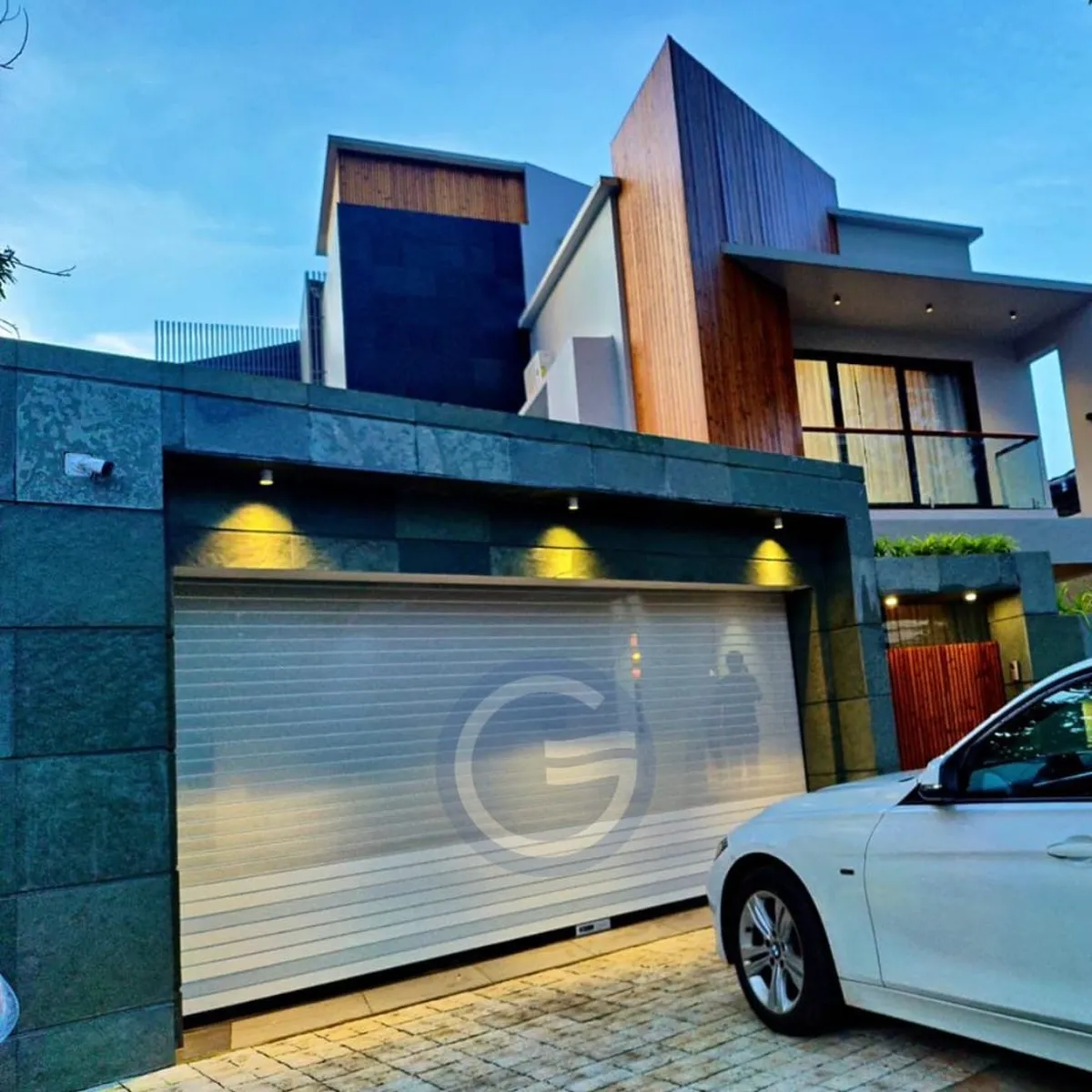

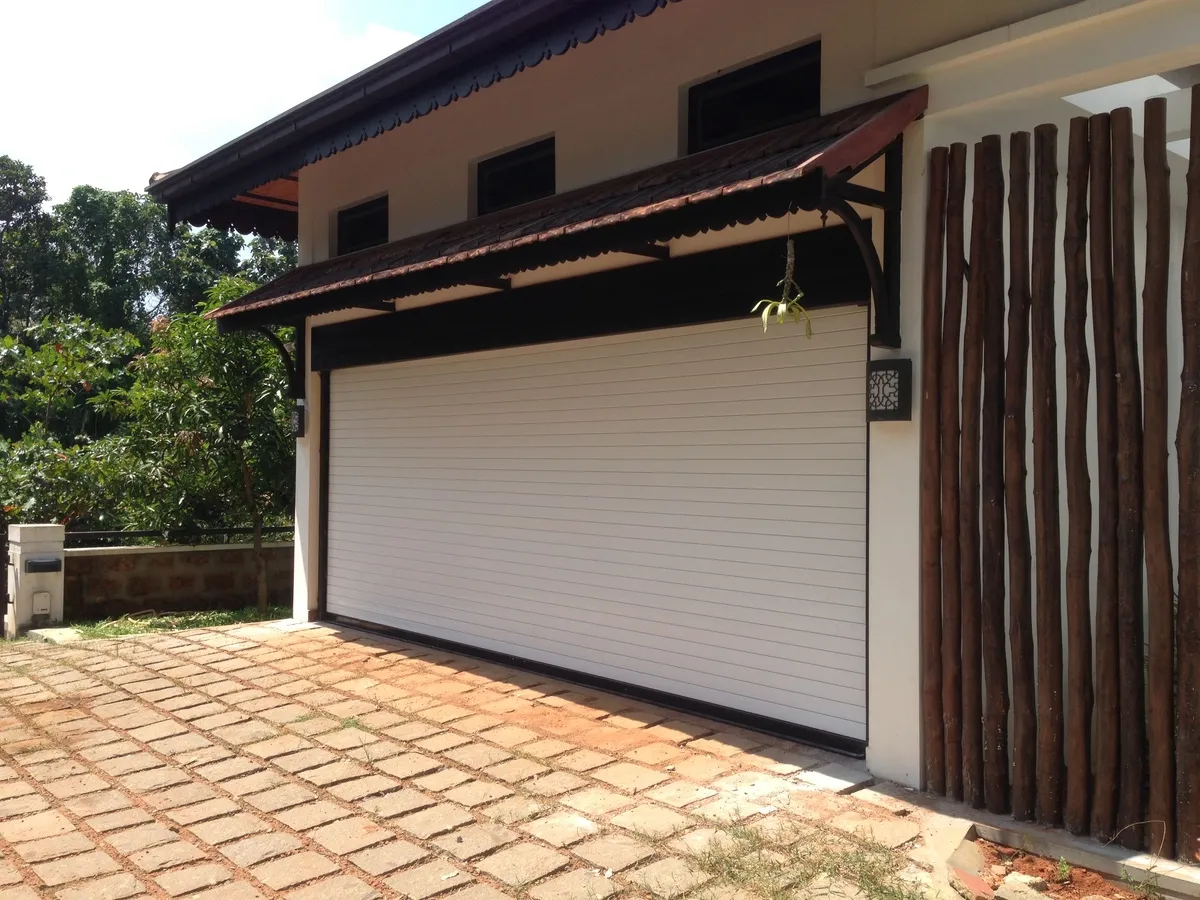

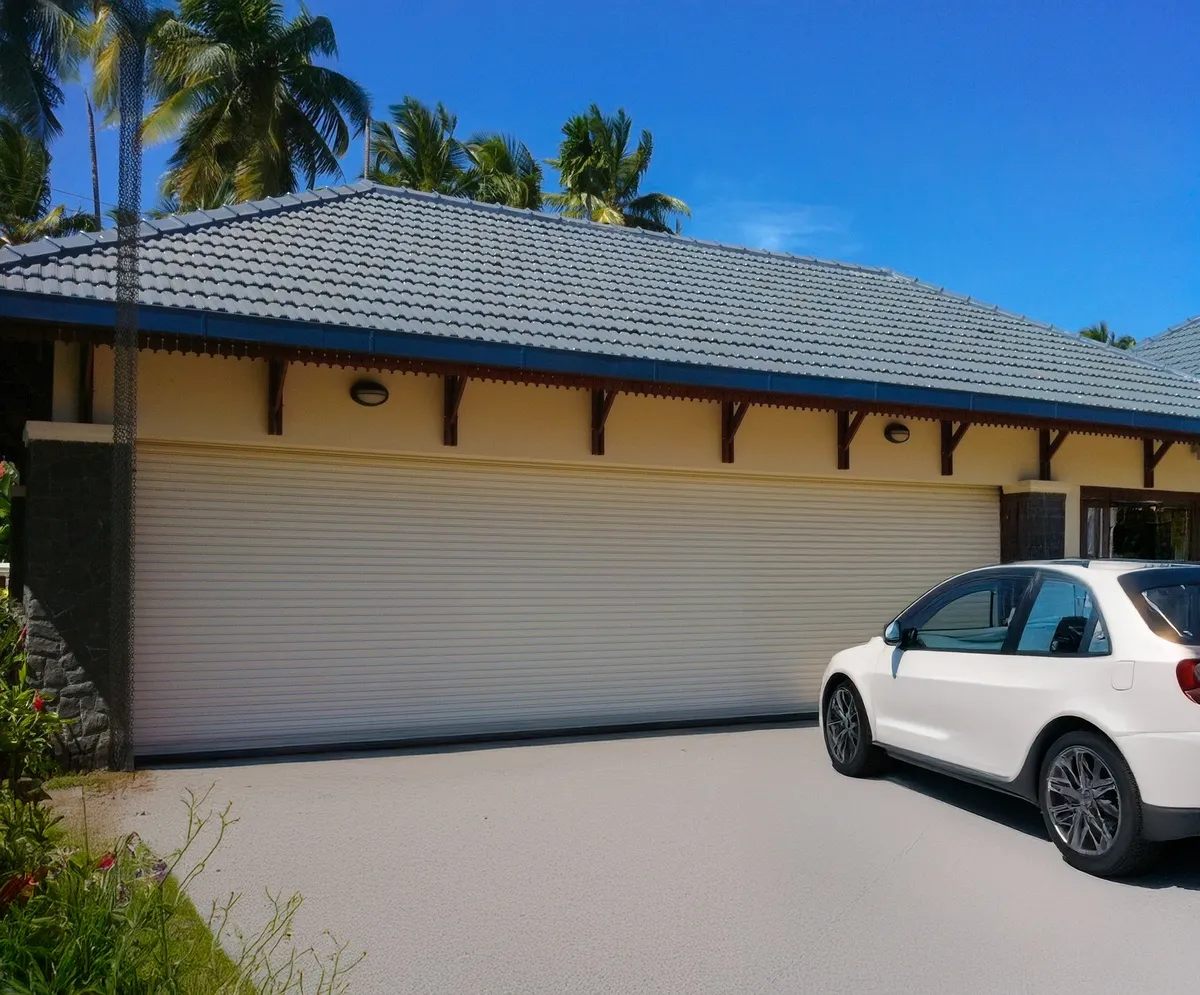

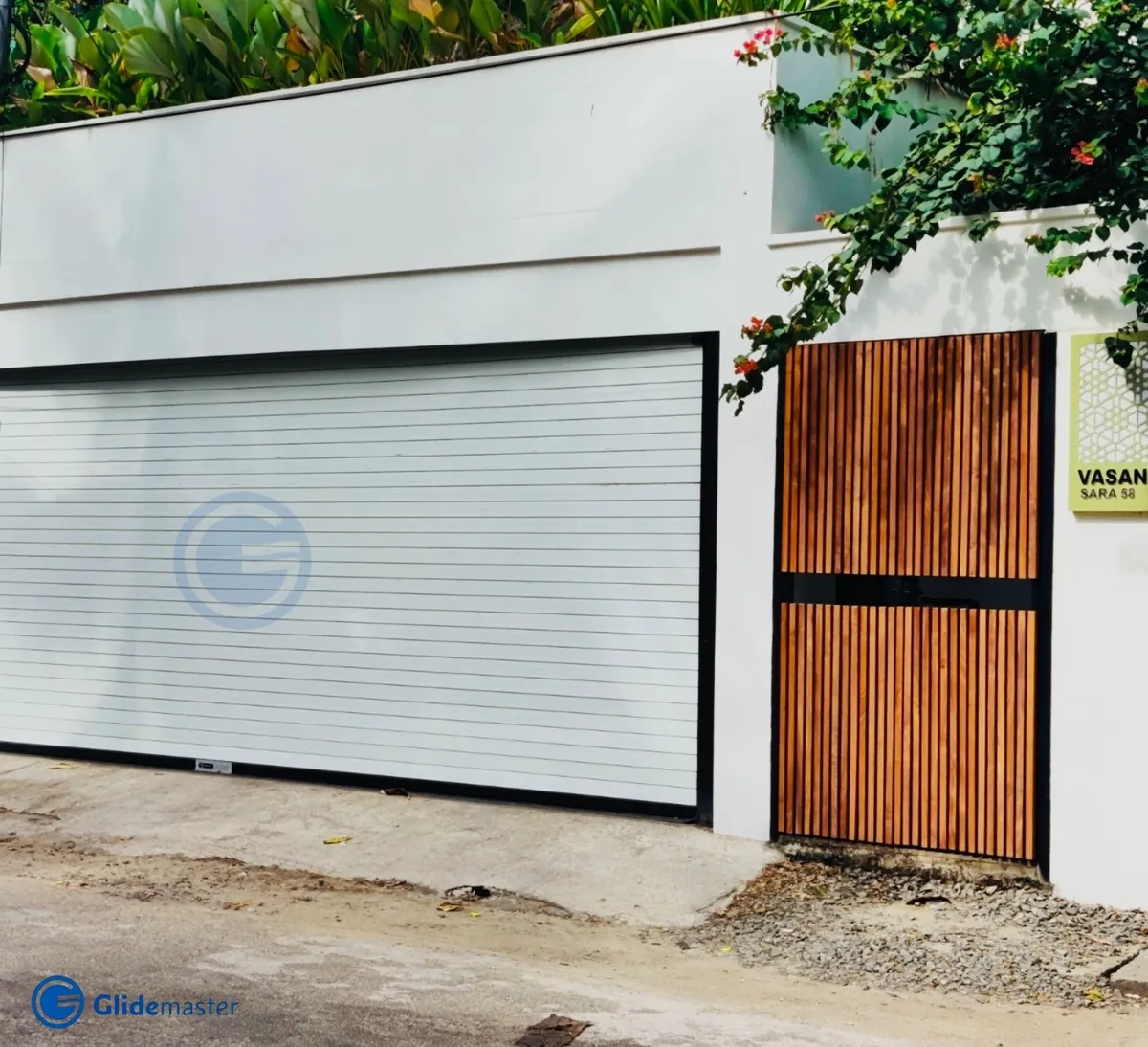

single skin garage shutters GL 1000

Single Skin Roll-Up Garage Doors, made from High-Tension Pre-finished Galvalume, offer Unmatched Durability and Lifelong Performance. Their pre-finished skin layers create a sleek and modern look, seamlessly blending into your home's design or structure. These doors Enhance your Garage's Aesthetic Appeal while providing Robust Functionality.

Key Features

Insect Proof Splash Proof Autolocking Heavy Duty Any RAL Color powder-coating Manual Override

Drive Options

Tubular Drive

Side Drive

Centre Drive

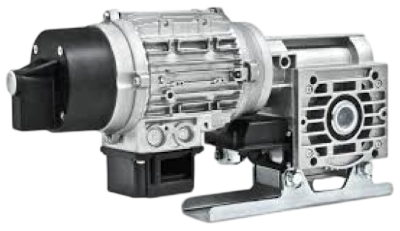

German Side Drive

Base material

Marine Grade Galvalume Pre finished color coated steel/Extruded Aluminum

Material thickness

GL-0.9mm to 1.05mm AL-1.5mm

Screen Locking

Double side interlocking + Double Side nylon beadings/Nylon Caps

Profile Height

75mm/100mm

Profile Shape

Full flat/Magna/Ultima

Protective Coating

GL-Zinc Aluminum Coating (Anti corrosive and Hard)

Protective Coating Combination

55% of aluminum 43.4% zinc & 1.6% silicon

Protective coating Thickness

120GSM

finish

Pre color coated natural finish (RAL 9003) Oven baked zinchromate coating and oven baked hard paint coating

Weight

13.2Kg/m2 approx

Strength

550mpa tensile strength

Roll forming Process

International design with most advanced multi stage roll forming process with 30% extra strength profile ensuring 100% perfection and finishing.

Download Brochure

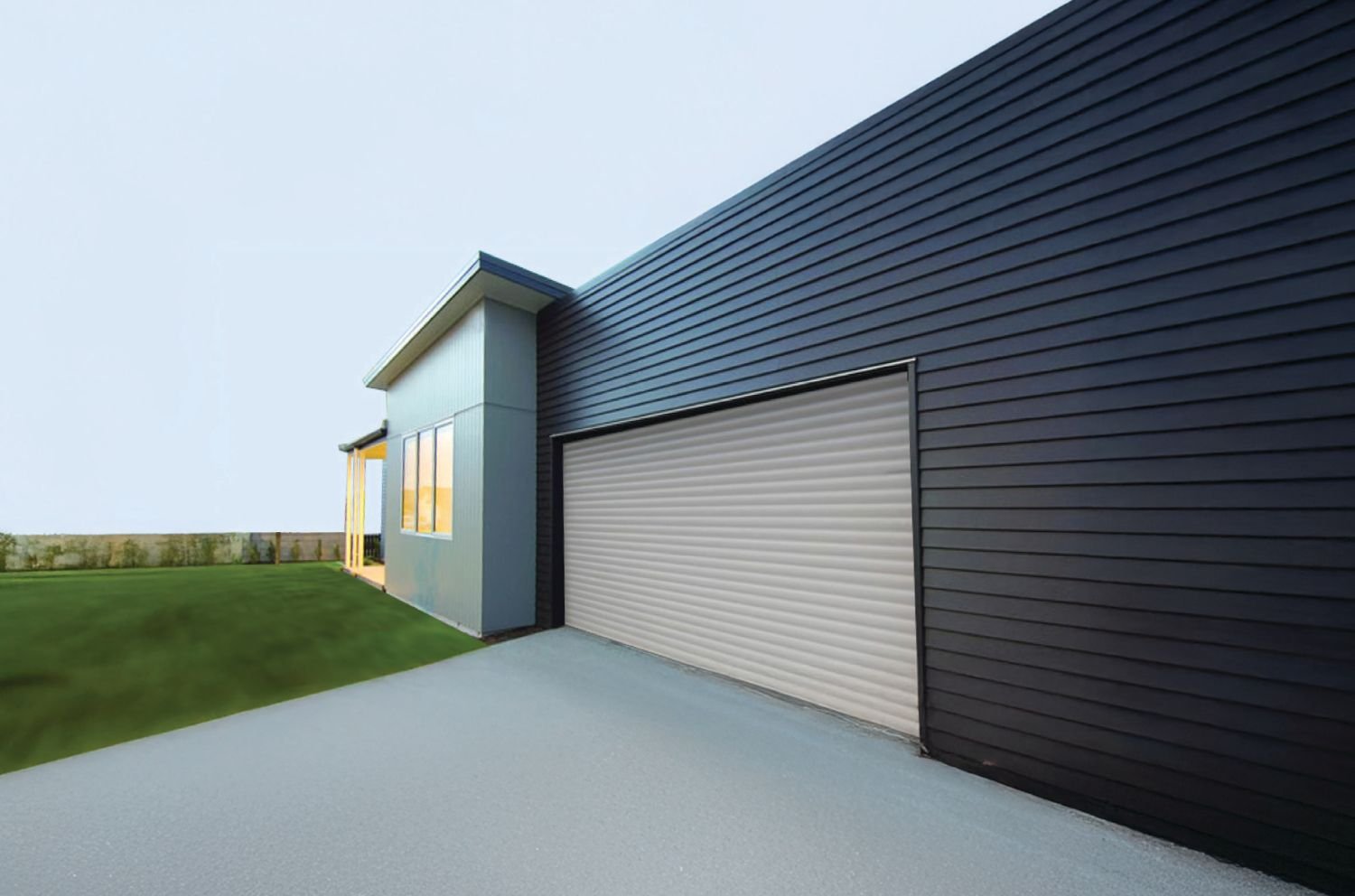

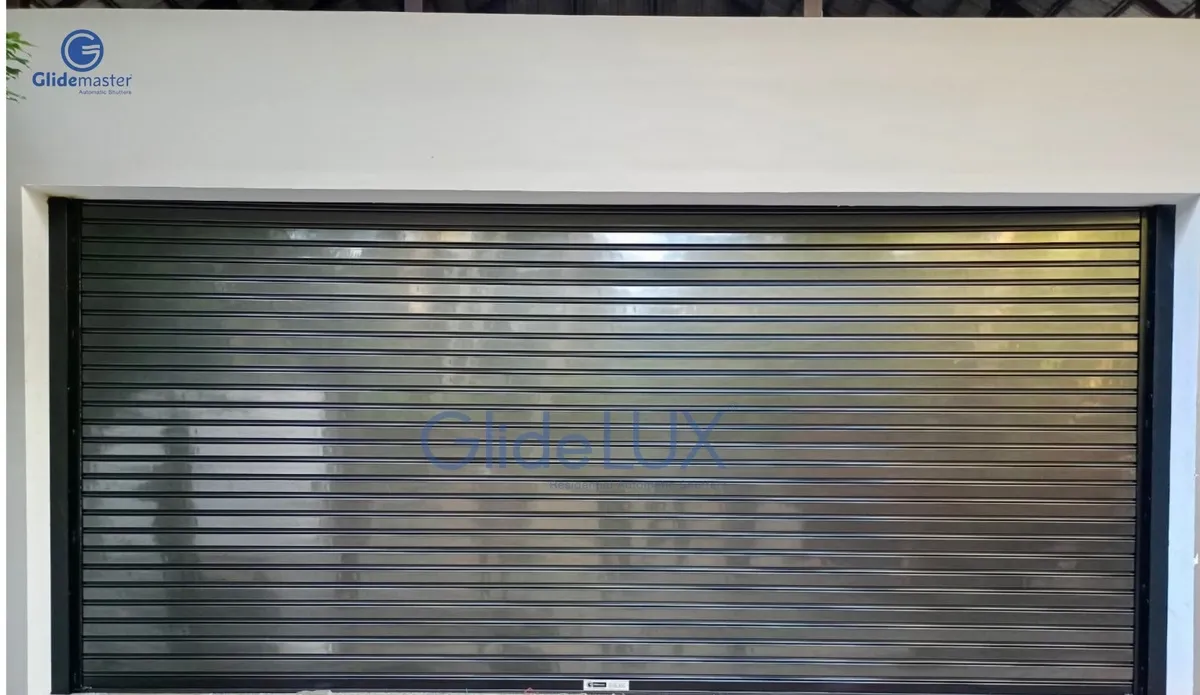

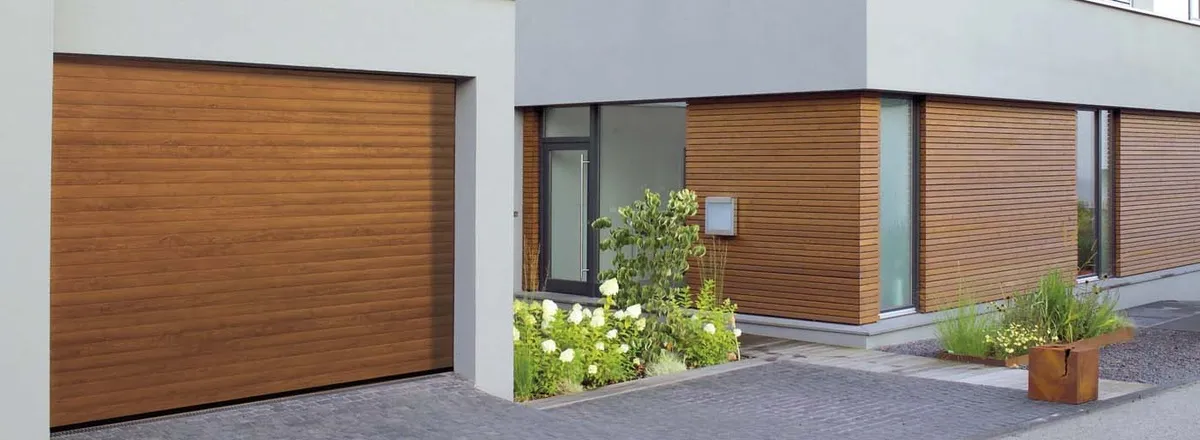

Aluminum Garage shutters SL 7500

Single Skin Aluminum Roll-Up Garage Doors, made from Extruded Aluminum, offer Unmatched Durability and Lifelong Performance. Their pre-finished skin layers create a sleek and modern look, seamlessly blending into your home's design or structure. These doors Enhance Your Garage's Aesthetic Appeal while Providing Robust Functionality.

Key Features

Insect Proof Splash Proof Autolocking Compact Size Strong and Lightweight Any RAL Color powder-coating Manual Override

Drive Options

Tubular Drive

Side Drive

Centre Drive

Base material

6063-T6-Alloy

Screen Locking

Double side interlocking with nylon end caps

Profile Height

70mm

Profile Shape

Aesthetic Single Skin profile specially designed for Homes

Perforation method

CNC Ultra Micro Perforation If needed

Download Brochure

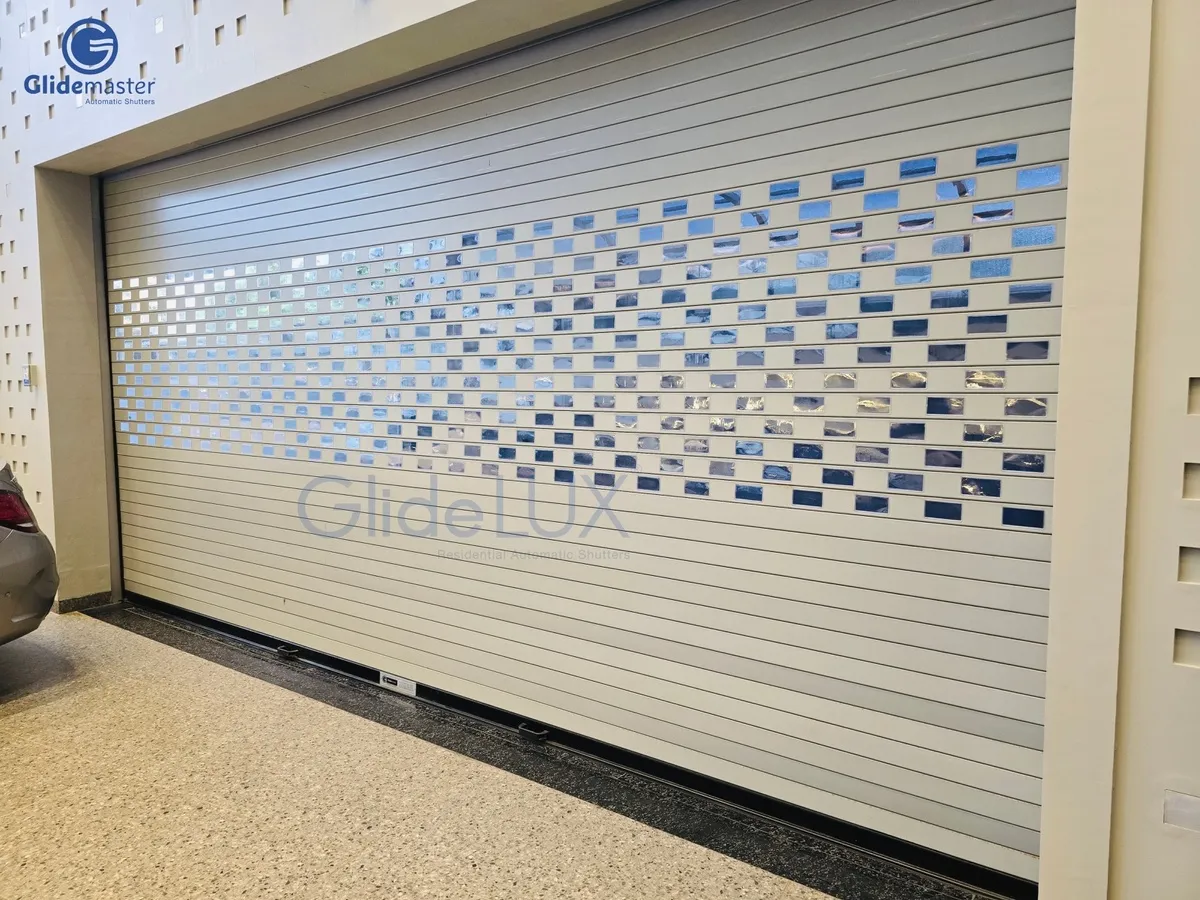

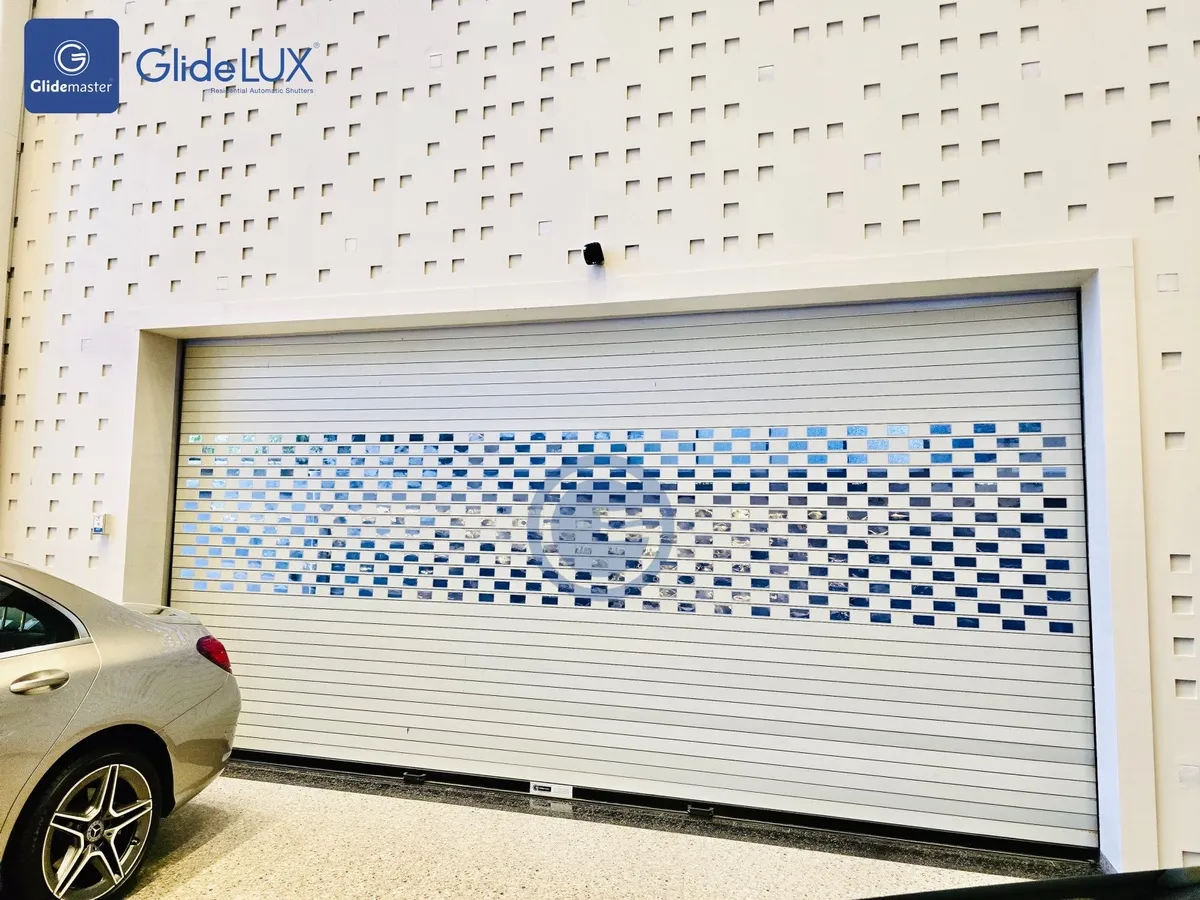

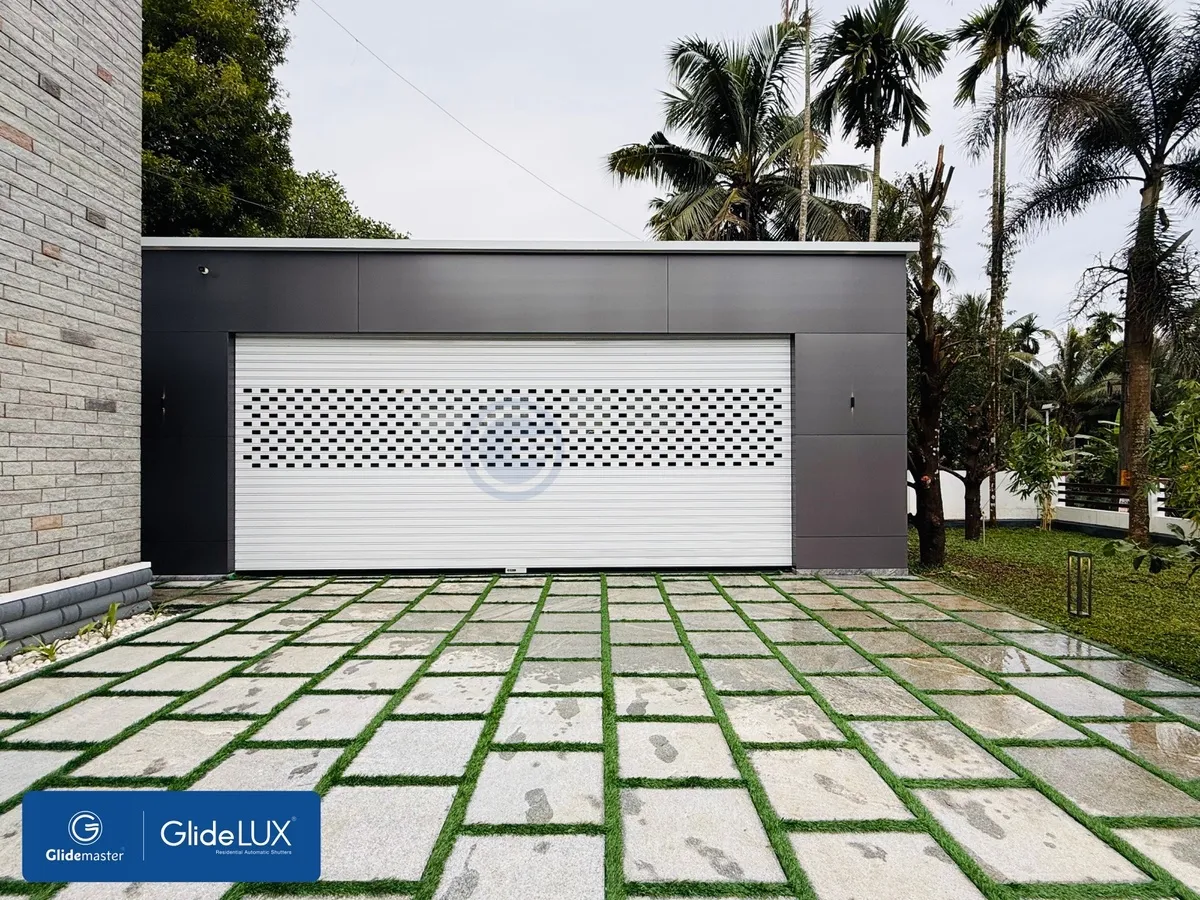

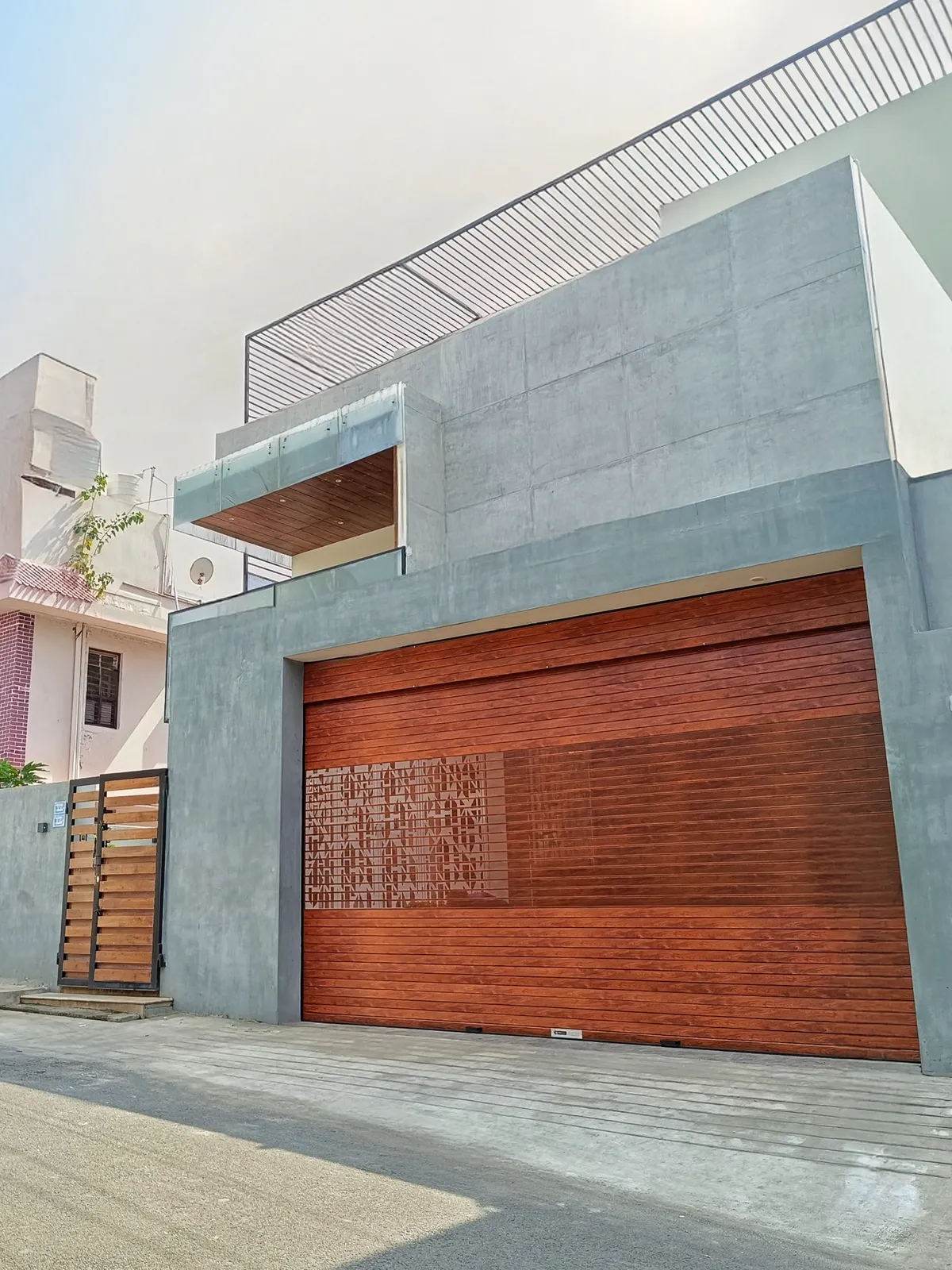

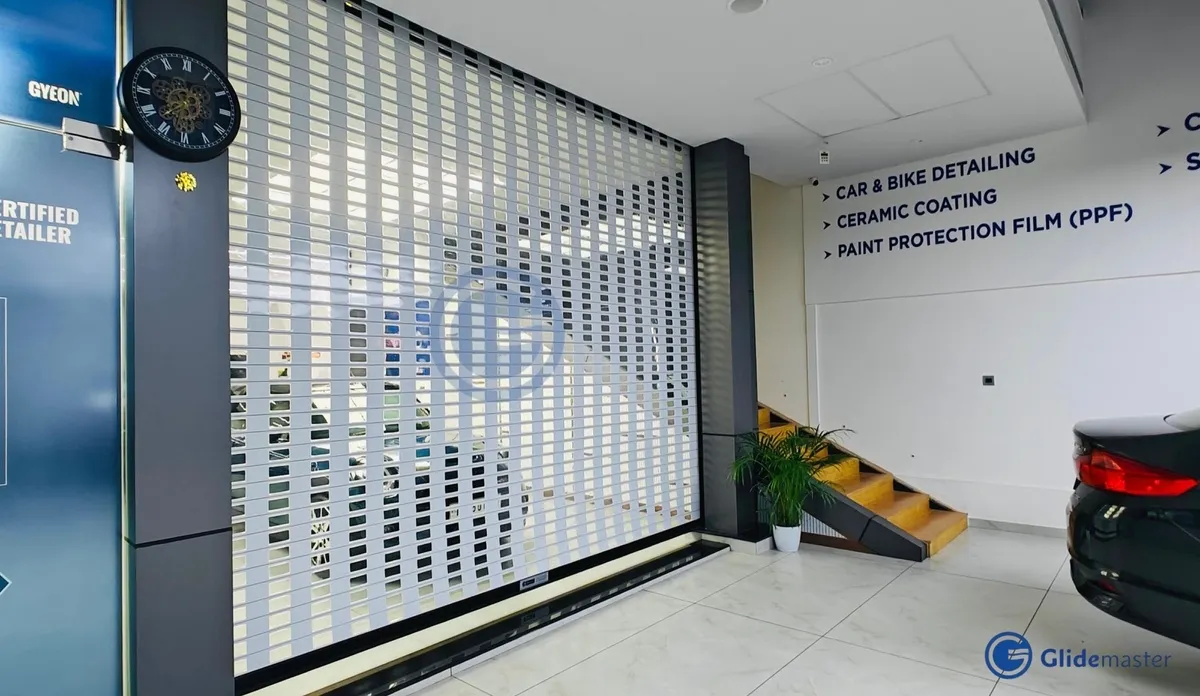

garage shutter with polywindow GLP 7500

Single Skin + Poly window shutters feature the latest design, combining Transparency with Exceptional Strength and Safety. Polycarbonate vision panels are strategically placed within Premium Single Skin Shutters to create a unique style for your Garage. This innovative design ensures clear visibility while maintaining maximum security. Each profile is Meticulously Engineered to customer specifications, ensuring the Highest Level of Precision and Customization.

Key Features

Insect Proof Splash Proof Autolocking Manual Override Heavy Duty Any RAL Color powder-coating Transparency control

Drive Options

Tubular Drive

Side Drive

Centre Drive

Base material

Marine Grade High-Tensile Galvalume prefinished color coated steel

Material thickness

1.05mm to 1.20mm

Screen Locking

Double side interlocking + double side nylon beading on both sides end to end

Profile Height

75mm

Profile Shape

Full flat (Compact profile- Specially designed)

Window Material

100% Virgin Polycarbonate

Transparency

As per Design

Protective Coating

Zinc + Aluminium Coating

Protective Coating Combination

55% of aluminum 43.4% zinc & 1.6% silicon

Protective coating Thickness

150GSM

finish

Pre color coated natural finish (RAL 9003)

Extra Coating

Premium Exterior Powder coating

Weight

15.5Kg/m2 approx

Strength

550mpa tensile strength

Locking Method

Vacuum Press-lock method

Download Brochure

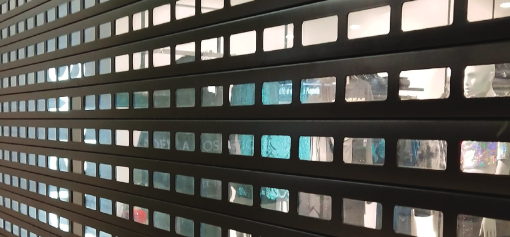

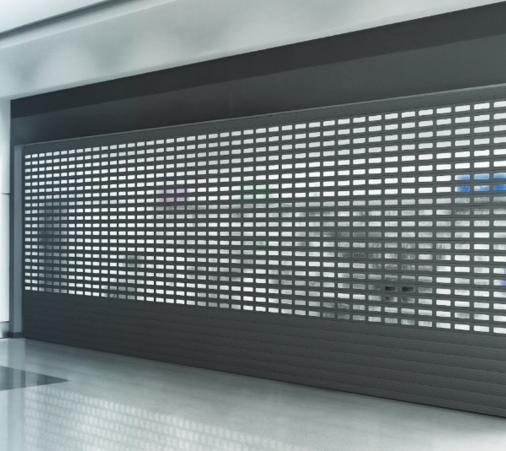

Aluminum profile with poly strip SLW 7500

Poly Strip Protected Vision Windows feature the latest design, combining Transparency with Exceptional Strength and Safety. Polycarbonate Strips are tightly placed within Premium Aluminium Single Skin Shutters to create a unique combination shutter profile. This innovative design ensures clear visibility while maintaining maximum security. Each profile is Meticulously Engineered to Customer Specifications, Ensuring the Highest Level of Precision and Customization.

Key Features

Insect Proof Splash Proof Protect Dust and Weather Transparency control Autolocking Manual Override Strong and Lightweight Any RAL Color powder-coating

Drive Options

Tubular Drive

Side Drive

Centre Drive

Base material

6063-T6 Alloy

Screen Locking

Double side interlocking with nylon end caps

Profile Height

70mm

Profile Shape

Aesthetic Single Skin profile specially designed for Homes

Perforation method

CNC Ultra Micro Perforation (if needed)

Polywindow Material

Virgin Polycarbonate material

Design Option

Customized designs possible

Overall Finish

Powder coated to any RAL color

Download Brochure
